22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 22kw Solar Pump Inverter Voltage 380v/220v
Output Type Three Phase/single Phase Display LED+LCD
Protection Anti-islanding/Overcurrent/short Circuit/Leakage Current Output Frequency 0-600HZ
Brand VEIKONG MPPT More Than 99.9999%
Special Function MPPT+PID
Highlight

30hp 3 Phase Solar Pump Inverter

,

22kw 3 Phase Solar Pump Inverter

,

22kw Solar pumping inverter

Product Description

LCD display 22kw 30hp Mppt control solar pump inverter controller




Electrical Specifications and Power degree




220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS



Product Details and Features:

1. Power from 220V (0.75 – 75KW) , 380V (0.75 – 160KW)

2. DC/AC Input Compatible, can support DC and AC Input at same time

3. Protection Functions: Over/Under voltage Over-current, Short Circuit, Phase Failure etc

4. Optimized MPPT Arithmetic Accuracy 99%

5. Multi-liquid-level Control, Dry run protection, Wake and Sleep function,,PID control

6. Auto-dormancy on weak light, auto-recovery working on strong light, no need for man-made operations

7. Auto switch over From Solar to Grid Supply with weak light

8. Support optional LCD display and GPRS module.



Conditions for full water detection to take effect:
1. Any DI terminal set to No. 60 function receives the input switch closing signal. For example, after P06.03
is set to 60, DI3 closes.
2. The analog input is greater than the detection value, for example: set P47.18 = 1, P47.19 = 50%, then the
AI1 input is greater than 5V or 10mA
3. After the condition 1 or 2 is met, continue to set the time at P47.20 and the system will report A.FULL
Full water recovery conditions:
4. The system enters the full water detection stage and displays A.FULL
5. When both conditions 1 and 2 are not met and the maintenance time is greater than the time set in
P47.21, the system resumes.


 22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology 0
Accessories:

1. GPRS (support 2g/3g/4g internet)

It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.

22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology 1

2. LCD keypad

Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology 2

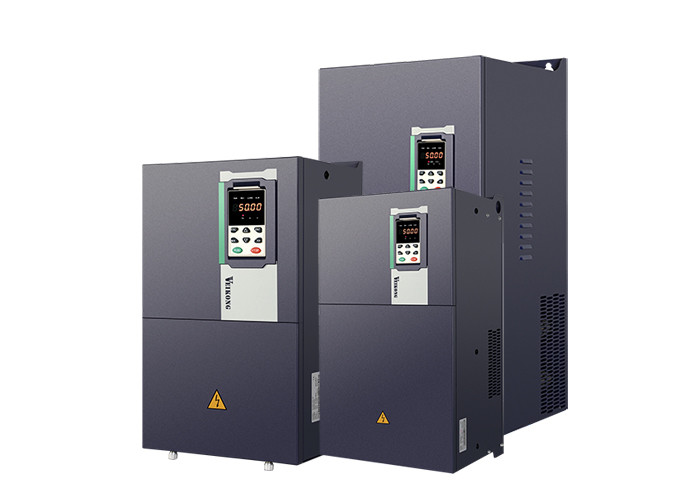

VFD500-PV 22KW 380V inverter picture:
22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology 3


Package:

When power is less than 45kw, we use carton package:
22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology 4

When power is more than 45kw, we use wood case package:
22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology 5


22kW 30HP 3 Phase Solar Pump Inverter with Advanced MPPT Technology 6
