99.9999% MPPT 75-150HP Solar VFD Budget-Friendly 3 Phase Solar Pump Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE ROHS
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name Three Phase Solar Pump Inverter Voltage 380v
Current 152A/176A/210A Frequency 50hz/60hz
Output Power 75kw/90KW/110KW Horsepower 100hp/120hp/150hp
MPPT Efficiency 99.999% Color White And Dark Blue
LCD Display Multiple Language And Parameter Upload And Download Brand Name VEIKONG
Special Features MPPT+PID OEM Service Support With Certain MOQ
High Light

150hp Solar Vfd Controller

,

110kw Solar Vfd Controller

,

90kw Three Phase Solar Inverter

Product Description

MPPT 99.9% Solar pump inverter 75kw 100hp 90kw 120hp 110kw 150hp solar vfd



Electrical Specifications and Power degree



  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Power range 220v 0.75kw to 75kw, 380v 1.5kw-160kw
Cooling method Air cooling
Protection degree IP20/IP65
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS



Noted: We suggest solar panel power should be 1.3-1.4 times higher than solar pump power ,

And solar pump inverter power should be higher level than solar pump.

When solar pump distance to inverter higher than 100m,

It should be equipped with Output reactor or higher level power inverter.

For Solar panel,total VOC less than Maximum DC voltage of inverter and Solar panel vmp is recommend

530V for 380V pump and 305V for 220V pump.





Key Advantages:


1, No need set any parameters, after connecting wire, it will run automaticlly.



2, Can support solar panels and ac power at same time, when solar is not enough, ac power can compensation.



3, Support solar inverter parameters marco(USER menu). It is easy to find and set parameters.



4, Sleep and wake up function. dry runing protection self learning function, water full protection.



5, LCD keypad can help you know all parameters' meaning on display and it is easy to monitor inverter's situation.



6, Support PID function within MPPT control mode, support 2G/3G/4G GPRS remotely monitor.



7, MPPT efficiency tracking value can be more than 99%.



How to start solar pump inverter?



Make sure all cables connections of solar panel and pump motor correct and no need to set any parameter,

If you want to set parameter, you can do as follows.



Step 1: (Keypad control):Set motor parameter P11.02- P11.06 as per motor pump name plate If dry run protection is required,

measure the unload protection current according to the following method.

If dry run protection not required then miss this step and go to step 2.



Step 2: Set other related special solar pump parameters for optimization if needed.



Step 3: After trial run finishing, if motor pump still not output water when inverter is running more than 40 Hz.

Please disconnect the power supply and replace any two-phase wiring of the motor.

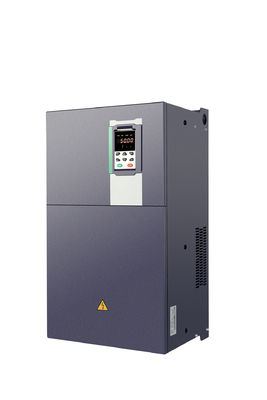

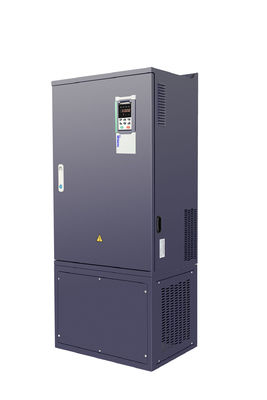

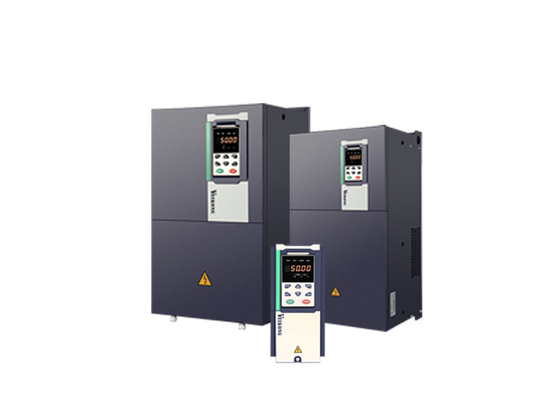

VFD500-PV appearance detail pictures and accessories
99.9999% MPPT 75-150HP Solar VFD Budget-Friendly 3 Phase Solar Pump Inverter 099.9999% MPPT 75-150HP Solar VFD Budget-Friendly 3 Phase Solar Pump Inverter 1
99.9999% MPPT 75-150HP Solar VFD Budget-Friendly 3 Phase Solar Pump Inverter 2

GPRS
99.9999% MPPT 75-150HP Solar VFD Budget-Friendly 3 Phase Solar Pump Inverter 3
LCD
99.9999% MPPT 75-150HP Solar VFD Budget-Friendly 3 Phase Solar Pump Inverter 4

Output reactor
99.9999% MPPT 75-150HP Solar VFD Budget-Friendly 3 Phase Solar Pump Inverter 5
