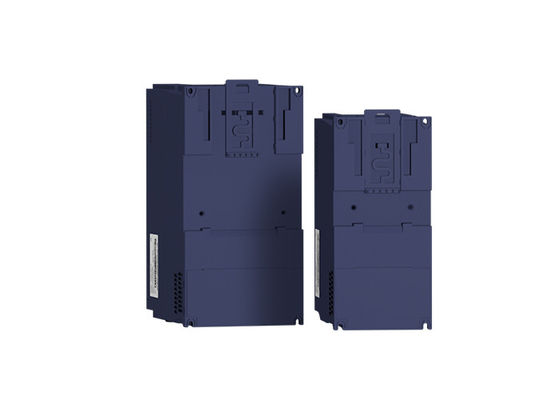

2.2KW 4KW 5.5KW Solar Dc Ac Inverter Water Pump Inverter Controller
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 2.2KW 4KW 5.5KW Solar Pump Inverter Current 13A
Type AC-DC-AC Input Voltage 380V-480VAC
Display LCD/LED Warranty 18 Months
Highlight

5.5KW Solar Dc Ac Inverter

,

4KW Solar Dc Ac Inverter

,

2.2KW Water Pump Inverter Controller

Product Description

2.2KW 4KW 5.5KW Solar Pump Inverter For Solar Irrigation System



Product Features:

1. Built in automatic sleep-wake up function, start by timer is option.

2. Compatible with dual power input, AC grid and DC power supply input.

3. Dry run (under load ) protection

4. Motor maximum current protection

5. Low input power protection

6. Lowest stop frequency protection

7. LED/LCD display operating panel and support remote control

8. Strong lightning protection

9. GPRS function is option for remote start and stop, remote parameters setting.


Electrical Specifications and Power degree




220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS



Model Range

Drive model

Max DC input current   (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2




Product Application



2.2KW 4KW 5.5KW Solar Dc Ac Inverter Water Pump Inverter Controller 0





2.2KW 4KW 5.5KW Solar Dc Ac Inverter Water Pump Inverter Controller 1



FAQ



1. What is the MPPT efficiency value of your product?



Our solar pump inverter with Auto-Mppt more than 99% and user friendly no need set any parameters, just connect with solar panels and pumps, it running automatically.



2. Does your inverter support AC and DC input?



Yes, our solar pump inverter support AC and DC input, you also can use them at the same time.



3. Are all inverters original?



Of course, we only do original product, because we have a strong and professional technical team.
