Efficiently Control Motor Speed with 3 Phase Solar Pump Inverter from VEIKONG
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name 18.5KW 22KW Solar Pump Inverter Current 45A
Input Type Support AC And DC Input Output Type 3 Phase
Efficiency More Than 99.6% Display LED/LCD
Color Dark Blue Orginal China
OEM Supported PC Tool Software Supported
Control Mode SVC VF And VC
High Light

22KW Veikong Inverter

,

18.5KW Veikong Inverter

,

22KW Variable Frequency Drive

Product Description

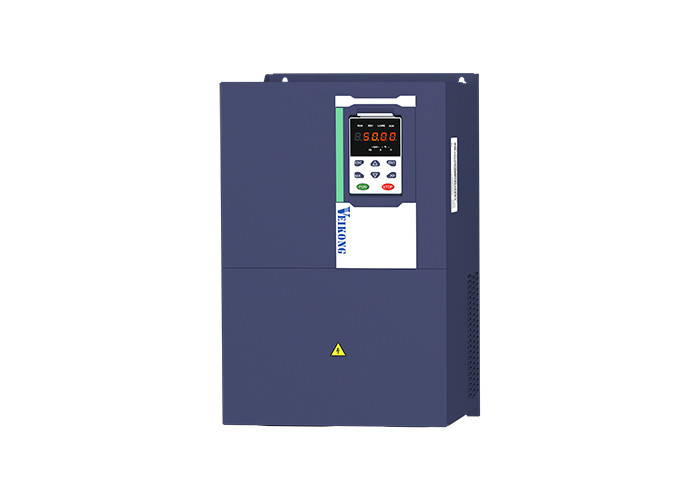

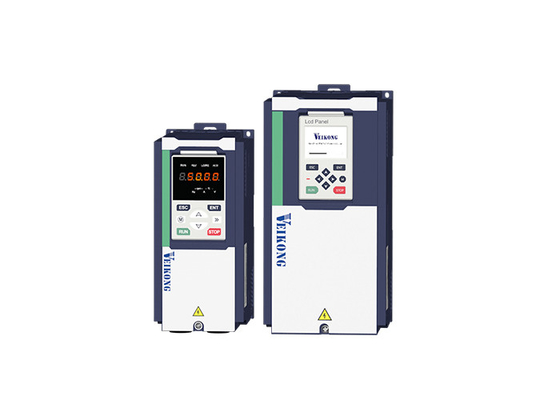

380V 440V 18.5KW 22KW Solar Pump Inverter With LCD Keyboard Display



VEIKONG company introduction:

VEIKONG is a leading technology company founded in 2014. Over the years, we have grown significantly and expanded our portfolio to include a wide range of products. Our commitment to innovation and quality is reflected in our range of offerings which includes Variable Frequency Drives, Photovoltaic Solar Pump Inverters, and Soft Starters.

At VEIKONG, we take pride in our ability to develop cutting-edge solutions that meet the evolving needs of our clients. Our products are designed to provide customers with the best possible user experience and are built to withstand the rigors of daily use. As we strive to stay ahead of the curve, we continuously invest in research and development to improve our products.

Our Variable Frequency Drives, for instance, are ideal for industrial applications as they offer energy-efficient control of motor speed and performance. Our Photovoltaic Solar Pump Inverters on the other hand, are designed to meet the unique demands of off-grid solar water pumping systems. They are highly efficient, reliable, and versatile while our Soft Starters provide an ideal solution for reducing stress on equipment, enhancing overall safety, and extending the lifespan of motors.

At VEIKONG, our dedicated team of experts works tirelessly to deliver exceptional customer service. We strive to build long-lasting relationships with our clients by providing them with high-quality products that exceed their expectations. We are committed to continuously developing new solutions that help our clients optimize their processes, reduce their energy consumption, and ultimately save costs.

In conclusion, VEIKONG is a leading technology company that has established a strong reputation for delivering top-quality products and services. Our constant innovation, dedication to quality, and exceptional customer service have helped us build long-lasting relationships with our clients. We are confident that our products will provide customers with an improved user experience and quality assurance.



Excellent software:

1, Auto MPPT more than 99%.
2, No need set any parameterit is very good control for voltage, and Automatic start and stop.
3, Can automatically stop the pump when the tank is full
4, Also can automatically stop pump when there have no water inside the well
5, Different from many competitors, our inverter support minimum power protection and maximum current protection to ADAPT to different pump requirements.

For example, frequent start and stop at low voltage is not good for pump so you can let inverter sleep to make pump stop or work only in the minimum frequency

High quality hardware:

1, Support both DC/AC input and 220V level
2, Support both single phase output and three phase output
3, Built-in C3 EMC filter for better harmonic and VDR grounding conforming
4, Widely working voltage can work as low as 350V-800VDC for 380V level and 200-410VDC for 220V level
5, Support input power from solar panels, on-grid power, generator..
6, Can be used with solar panels in day time, at night with on-grid power or generator
7, Can switch between solar panels and on-grid power automatically





Electrical Specifications and Power degree




220V

380V

Max input DC voltage(VOC)

450V

800V

DC voltage range

200~450VDC

350~800VDC

Recommended DC input

voltage range (Vmpp)

250V-400V

450V-600V

Recommended Input Operation

Voltage



305V(Vmpp)



530V(Vmpp)

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP65

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS



Product Application



Efficiently Control Motor Speed with 3 Phase Solar Pump Inverter from VEIKONG 0



VEIKONG solar pump inverter application

VEIKONG Solar VFD
