5500w 7500w 3 Phase Solar Pump Inverter For Swimming Pool Water Circulation System
Product Details
| Product Name | 5.5kw 7.5kw Solar Pump Inverter | Current | 17A |
|---|---|---|---|
| Output Frequency | 50/60HZ | Display | LED/LCD |
| Weight | 4kg | Output Type | 3 Phase |
| High Light | 7500w 3 Phase Solar Pump Inverter,5500w 3 Phase Solar Pump Inverter,7500w three phase solar inverter |
||
Product Description

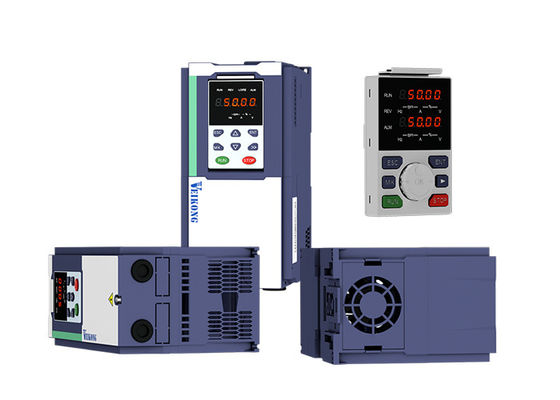

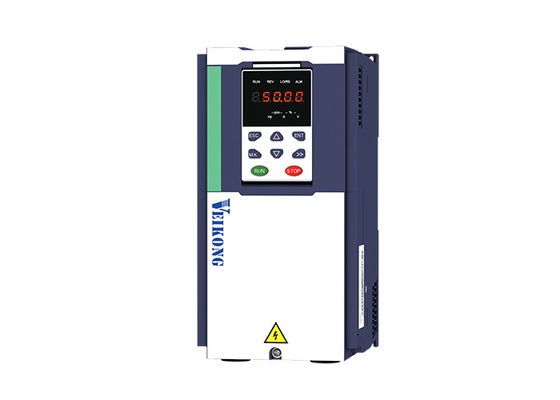

3 Phase 5.5KW 7.5KW Solar Pump Inverter For Swimming Pool Water Circulation System
1, Our solar pump inverter Auto mppt tracking >99%, auto tracking better than fixed Mppt.
2, Support LCD and LED keypad control and monitor.
3, Get maximum pump output flow
4, Dry run protection and automatic running without any commissioning and setting parameters
5, Low voltage range for running
6, Support AC and DC input, also support GPRS function
7, Can implement auto switch between solar input and grid input by configuring the boost or auto switching cabinet(meeting lightning protection requirements), implementing 24 hour unattended work
Electrical Specifications and Power Degree
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Product Application
FAQ
1. What is the MPPT efficiency value of your product?
Our solar pump inverter with Auto-Mppt more than 99% and user friendly no need set any parameters, just connect with solar panels and pumps, it running automatically.
2. Does your inverter support AC and DC input?
Yes, our solar pump inverter support AC and DC input, you also can use them at the same time.
3. Are all inverters original?
Of course, we only do original product, because we have a strong and professional technical team.
