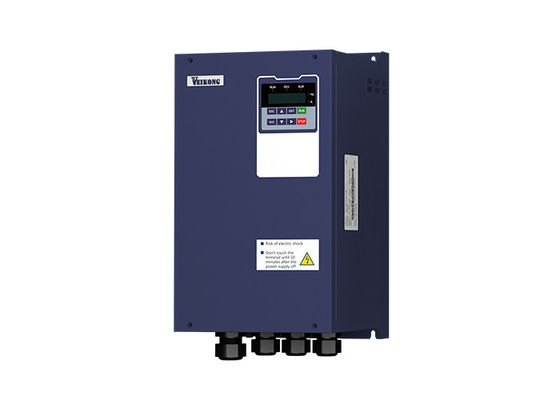

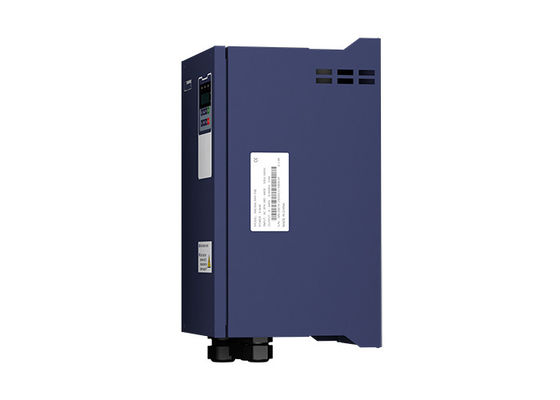

IP54 4kw 5.5kw 7.5kw 11kw Solar Pump Inverter for Farm Irrigation System with MPPT
Place of Origin China
Brand Name VEIKONG
Certification CE, Rosh
Model Number VFD510-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Paper carton and wooden box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C
Supply Ability 15000pcs per Month
Product Details
Output Frequency 50HZ 60Hz Application Farming Irrigation And Solar Pumping System
Output Current 13A Output Type 3 Phase, TRIPLE
Warranty 18 Month Protection Overload,over Heat,over Voltage
Voltage 380V-480V Type AC-DC-AC
MPPT Efficiency 99.999% Original China
High Light

4000w MPPT VFD Solar Pump Inverter

,

480V MPPT VFD Solar Pump Inverter

,

Irrigation System MPPT Solar Pump Inverter

Product Description
IP65 4kw 5.5kw 7.5kw 11kw Solar Water Pump Controller Inverters For Irrigation System



KEY ADVANTAGE



1. Cover voltage levels 220V AC and 380V AC.

Support three-phase 380V pumps, the power from 4KW to 11KW.
2. Easy to use
The inverters automatically start or sleep only after being connected to solar battery panels without any parameter setting.
3. Highly reliable for using multiple protective measures
Including PV over-voltage protection, PV polarity reverse warning, and auto derating against over-temperture, which extend product life.
4. Use advanced MPPT algorithms, ensuring that the solar power tracking efficiency reaches 99%
5. Models of 2.2kW or lower can be configured with boost module,meeting low-voltage work requirements. This reduces the use of solar battery panels and therefore the cost.
6. Can implement auto switch between solar input and grid input by configuring the boost or auto switching cabinet(meeting lightning protection requirements), implementing 24-hour unattended work.
7. Support the configuration of the GPRS module, which implements remote parameter viewing and control by using the mobile APP.
8. Support the cabinet solution for level IP65.





  220V 380V
Max input DC voltage 410V 800V
Recommended MPPT voltage range 270~400VDC 350~750VDC
Recommended input voltage 310V 513V
MPPT efficiency 99.9%
Input channel 2
Rated output voltage 3-phase 220VAC 3-phase 380VAC
Output frequency range 0~60Hz
Max efficiency of the machine 97%
Ambient temperature range -10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method Air cooling
Protection degree IP20
Altitude Below 1000m; above 1% for every additional 100m.
Standard

CE







IP65 4kw 5.5kw 7.5kw 11kw mppt vfd solar water pump controller inverters for irrigation system


Applications



IP65 4kw 5.5kw 7.5kw 11kw mppt vfd solar water pump controller inverters for irrigation system



Q&A


1. Does the product need to set a lot of parameters?

No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for 600S then it will automatically start

2. Could it replace my previous PV pumping inverter?
Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.

3. How to design solar PV water pump system?
Key point: the rated VOC and vmp and power of the PV Array need to match the input range of the inverter. If need, we will provide technical support online.


4. How to make the water pump system work without sunshine?

Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design time.

5. How to use terminal control with external switch to run and stop solar pump inverter ?
(Terminal control): As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1, When the switch is closed, the drive run, when the switch is open, the drive stop

6. How to use a float in the water tank to stop the pump if the tank is full?
Use float switch to short DI 1 and com.

7. Use level probe in the well for protection against dry running
Set P24.12=1 and set P24.13 and P24.14 and P23.21

8. How to set minimum frequency 25hz and maximum 50HZ?
Set P47.05=25HZ and 47.06 to some time and 47.07 to some time

9. If pump is 60HZ frequency, how to set max frequency?
Notice:If your motor rated frequency is 60HZ you should set P01.06=P01.08=P11.05=60HZ.

10. How to achieve Automatic start after stop?
Our solar pump inverter is automatic start and stop with our special software
