Small Size 220V 1.5KW 2.2KW Solar Water Pump Controller For Agriculture Irrigation
Product Details
| Product Name | Small Size 220V 1.5KW 2.2KW Solar Pump Controller | Current | 8A |
|---|---|---|---|
| Voltage | 220V, 240V | Control Mode | MPPT |
| Warranty | 18 Months | Output Frequency | 50HZ 60Hz |
| High Light | 2.2KW Solar Water Pump Controller,1.5KW Solar Water Pump Controller,2.2KW water pump inverter controller |
||
Product Description
Small Size 220V 1.5KW 2.2KW Solar Pump Controller For Agriculture Irrigation

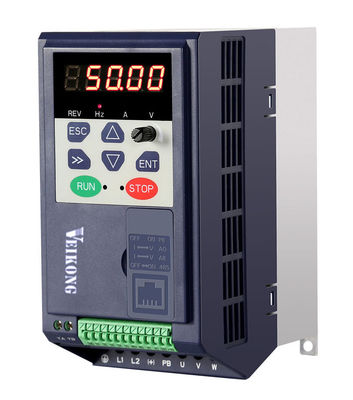

VFD500M-PV Solar Pump Inverter
1, Our solar pump inverter Auto mppt tracking >99%, auto tracking better than fixed Mppt.
2, Actual sites and solar radiation simulation testing platform for mppt>99%
3, Get maximum pump output flow
4, Dry run protection and automatic running without any commissioning and setting parameters
5, Low voltage range for running
6, Also can automatically stop pump when there have no water inside the well
7, Different from many competitors, our inverter support minimum power protection and maximum current protection to ADAPT to different pump requirements.
For example, frequent start and stop at low voltage is not good for pump so you can let inverter sleep to make pump stop or work only in the minimum frequency
Technical Specification
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Product Model
|
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
|
VFD500M-40T00075-PV |
4.2 |
2.5 |
0.75 |
|
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
|
220V single phase or three phase level |
|||
|
VFD500M-20T00075-PV |
6.7 |
4.5 |
0.75 |
|
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500M-20T00220-PV |
14.1 |
11 |
2.2 |
|
VFD500M-20T00400-PV |
22.6 |
17 |
4 |
Product Application
FAQ
1, How to use terminal control with external switch to run and stop solar pump inverter ?
(Terminal control): As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1, When the switch is closed, the drive run, when the switch is open, the drive stop
2, How to use a float in the water tank to stop the pump if the tank is full?
Use float switch to short DI 1 and com.
3, Use level probe in the well for protection against dry running
Set P24.12=1 and set P24.13 and P24.14 and P23.21
4, How to set minimum frequency 25hz and maximum 50HZ
Set P47.05=25HZ and 47.06 to some time and 47.07 to some time
5, If pump is 60HZ frequency, how to set max frequency ?
Notice:If your motor rated frequency is 60HZ you should set P01.06=P01.08=P11.05=60HZ.
6, How to achieve Automatic start after stop?
Our solar pump inverter is automatic start and stop with our special software
