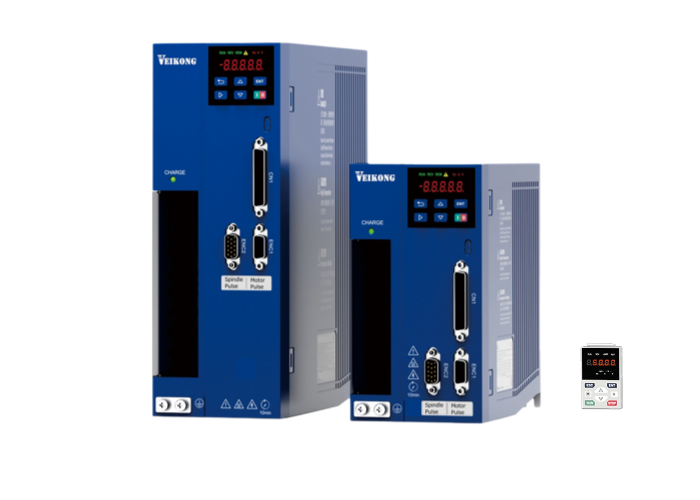

High Precision CNC Spindle Solar Pump Inverter 2.2kW–11kW with Built-in Braking Unit
Product Details
| Warranty | 24 Months | Altitude | 0~3000m; Above 1000m, Derating 1%-10% Per 100m |
|---|---|---|---|
| Storage Temp | -20℃~+60℃ | Protection Level | IP20 |
| Frequency Range | S6: 0~600Hz; S6C/S6M: 0~2000Hz | Input Frequency | 50Hz / 60Hz, Fluctuation＜5% |
| Highlight | 2.2kW CNC spindle motor,11kW high precision spindle,CNC spindle with warranty |
||
Product Description
1. Company Profile
Company Name: Shenzhen VEIKONG Electric CO.,Ltd.
- Address: 4F, Building 5, Dongluyang Industrial Park, No.4 Tengfeng 4th Road, Fuyong Phoenix Third Industrial Zone, Baoan District, Shenzhen, China
- Tel: +8675589587650
- Website: www.veikong-electric.com / www.veikong.com
- Qualifications: High-tech enterprise, Guangdong Provincial "Abide by Contract and Value Credit" Enterprise; ISO9001, CE, IEC certified
- R&D Strength: Professional R&D team, over 20 years professional management experience, one of the earliest independent AC drives enterprises in China
- Core Technology: Adopts high efficiency MPPT calculation, SPWM, sensorless vector control, vector and torque control technology; reaches international advanced standard, directly replace European, American and Japanese brands.
2. Model Description
- S6: Analog Pulse Type
- S6C: EtherCAT Bus Type
- S6M: M3 Bus Type
- Encoder Type: U=Incremental; M=Compound
- Power Code: 7R5=7.5kW; 011=11kW; 2R2=2.2kW; 4R0=4.0kW; 5R5=5.5kW
- Power Phase: T=Three phase
- Voltage Grade: 2=220V; 4=380V
- Braking Unit: B=With built-in brake unit; None=Without built-in brake unit
3. Product Selection Table-380V Grade Model
| Driver Model | Rated Output Current | Maximum Output Current | Applicable Motor | Braking |
|---|---|---|---|---|
| S6-U-4R0-T4B | 9.4A | 18.8A | 4.0kW | Built-in |
| S6-U-5R5-T4B | 13.0A | 26.0A | 5.5kW | Built-in |
| S6-U-7R5-T4B | 17.0A | 34.0A | 7.5kW | Built-in |
| S6-U-011-T4B | 25.0A | 50.0A | 11kW | Built-in |
4. Product Selection Table-220V Grade Model
| Driver Model | Rated Output Current | Maximum Output Current | Applicable Motor | Braking |
|---|---|---|---|---|
| S6-U-2R2-T2B | 9.4A | 18.8A | 2.2kW | Built-in |
| S6-U-4R0-T2B | 17.0A | 34.0A | 4.0kW | Built-in |
| S6-U-5R5-T2B | 25.0A | 50.0A | 5.5kW | Built-in |
5. Structural & Reliability Advantages
- New design concept, 46%-55% smaller than S5 series
- Independent air duct design, dustproof, avoid short circuit fault
- Large air volume & long-life cooling fan, aluminum fin heat dissipation
- Separated motor encoder and spindle encoder interface, easy wiring and maintenance
- Silicone keyboard keys for better touch feeling
- Integrated IGBT module with large margin design
- Complete overcurrent & short circuit protection
- Strong anti-electromagnetic interference, avoid pulse loss and communication error
