Hybrid Model 99% MPPT VFD Solar Pump Inverter With High Efficiency GPRS
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 26 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 3-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15000 per/ month |
Product Details
| Display Models | LCD LED And Shuttle Display | Proteion Mothod | Full Water Protection, Low Water Protection, Overcurrent Protection And Over Voltage Protection |
|---|---|---|---|
| Marco Mode | User Friendly | GPRS | Support |
| Phase | 3 Phase | Voltage | 380V-480V |
| High Light | 99% MPPT VFD Solar Pump Inverter,GPRS MPPT VFD Solar Pump Inverter,GPRS Solar VFD With MPPT |
||
Product Description
Hybrid Model 99% MPPT VFD Solar Pump Inverter With High Efficiency GPRS
1. Veikong key product high performance solar pump inverter advantages and highlights
Special feature:
1) Support Maximum mppt efficiency 99% to generate more energy for the water system
2) Special solar mppt mode and PID mode which is unique and special in this industry

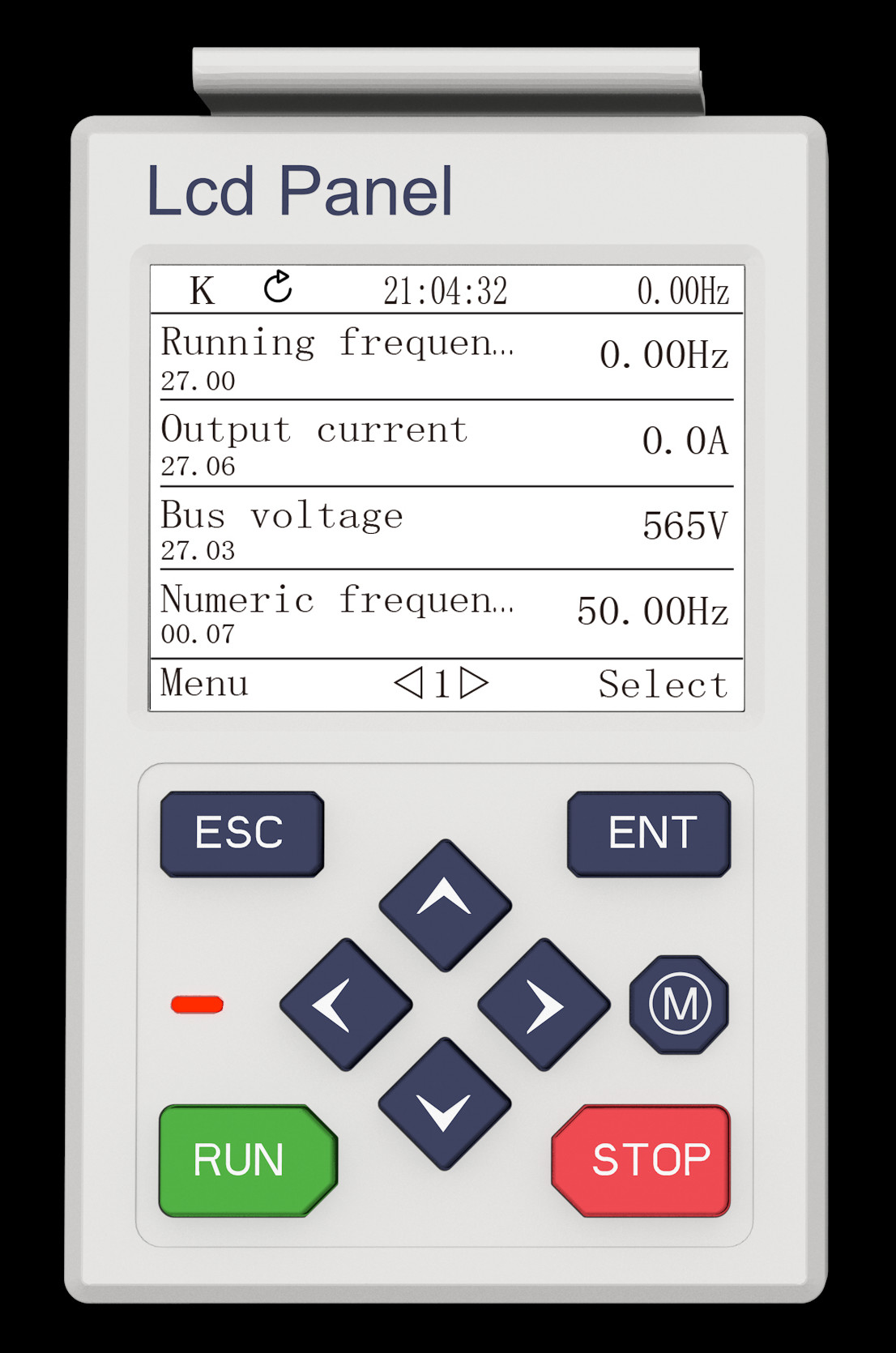

3) Support LCD display and shuttle display, also new model LCD and LED
4) Support IM AND PM pump to suitable for more models system
5) Support hybrid AC and DC which is more convenient to switch DC to AC when environment requires
6) Support dry run protection and full water protection, low water protection etc
7) Support one button to switch AC to make things easier
2. Veikong VFD500-PV solar pump inverter terminal explanation
| Type | Terminal symbol | Terminal name | Terminal function description |
| Switch input | +24V | +24V current | 24V±10%,Internal isolation from GND |
| Maximum output current:200mA | |||
| To provide 24V power supply, generally used as a digital input and output terminal power supply and external sensor power | |||
| PLC | Digital input terminal common | The factory default setting is connected PLC with +24V Terminal for on-off input high and low level switch | |
| When using the external signal to drive DI1~DI5, it will disconnect the connector slip of PLC with the +24V | |||
| COM | +24V ground | Internal isolation from GND | |
| DI1~DI4 | Digital input terminal 1~4 | Optocoupler isolation, compatible with bipolar input | |
| Optocoupler isolation, compatible with bipolar input | |||
| Voltage range:10V~30V |
3. VEIKONG solar pump inverter working fields
4. VFD500-PV series product brochure and user manual download here
VEIKONG VFD500-PV Hybrid Solar pumping inverter us...
VEIKONG solar pump inverter brochure.pdf
5. Veikong high standard and reliable after sale service
We will provide you 18 months warranty. If everything is broken down during this process, we will be responsible for that.
Your request for repairs on the spot has a quick response. You get the latest expertise carried out by Veikong service engineers. If it is not possible to fix the issue on-site, we will offer you a perfect in-depth investigation of your application to determine the root cause of the incident and avoid any potential re-occurrence.
