|Place of Origin||China|
|Minimum Order Quantity||1|
|Packaging Details||Carton and Wooden Box|
|Delivery Time||3 days, depend on the order quantity|
|Payment Terms||Western Union, T/T, L/C, D/A, D/P, PayPal|
|Supply Ability||15000pcs per Month|
|Product Name||IP20 380V 7.5KW Solar Pump Inverter||Current||17A|
7.5KW GPRS MPPT Solar Pump Inverter,
IEC GPRS MPPT Solar Pump Inverter,
LCD Keyboard MPPT VFD Inverter

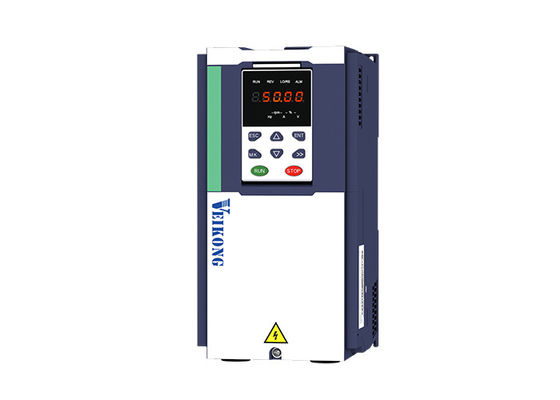

IP20 380V 7.5KW Solar Pump Inverter Support GPRS And LCD Keyboard
◊ Compatible with IEC standard three-phase asynchronous induction motors
◊ Compatible with popular PV arrays
◊ Grid supply option
◊ 10-year market proven experience of leading motor and pump drive technology
◊ Soft start feature to prevent water hammer and increase system life
◊ Built-in overvoltage, overload, overheat and dry-run protection
♦ Cost Effectiveness
◊ Plug-and-play system design
◊ Embedded motor protection and pump functions
◊ Battery-free for most applications
◊ Effortless maintenence
◊ Self-adaptive maximum power point tracking technology up to 99% efficiency
◊ Automatic regulation of pump flow
◊ Self-adaption to the motor used in the installation
♦ Remote Monitoring
◊ Standard RS485 interface equipped for each solar pump inverter
◊ Optional GPRS/WIFI/Ethernet RJ45 modules for remote access
◊ Spots value of solar pump parameters monitoring available from anywhere
◊ History of solar pump parameters and events lookup support
◊ Android/iOS monitoring APP support
Solar Pump Inverter Special Parameters
|47 Group solar pumping special group|
11:Restore default parameter except for motor parameter and auto-tune related parameter and factory parameter
12:Restore default to factory parameter 13:Clear tripping record
|P00.06||Source of the Operation Command||
Ø Command source: run,stop,forward,reverse,jog,fast brake stop.etc
|P00.07||Numeric frequency setting||00.00Hz～maximum frequency||50.00Hz||☆|
01:Output three phase 50HZ
02:Output three phase 60hz
21:Output single phase with capacitor 50hz
22:Output single phase with capacitor 60hz
31:Output single phase without capacitor 50hz
32:Output single phase without capacitor 60hz
|P01.08||Upper limit frequency||Lower limit frequency-maximum frequency||50.00Hz||☆|
|P07.03||Relay 1 Output terminal function group(T1A T1B T1C)||
4:Error2(same as Error1 except undervoltage)
5:Warning output(fault but in running)
|P11.01||AC asynchronous motor TYPE||
0:Three phase AC asynchronous motor
1:Single phase AC asynchronous motor without starting capacitor
|P11.02||Motor rated power||
Ø when power is less than 1kw ,0.75kw set to 0.8 as per round up principle ,0.55kw motor set 0.6
Ø when change motor rated power,AC drive will automatically set other parameter of motor name plate and motor model parameter be careful to use
|P11.03||Motor rated voltage||10V～2000V||Depend||★|
|P11.04||Motor rated current||
|P11.05||Motor rated frequency||1.00Hz～600.00Hz||50.00Hz||★|
|P11.06||Motor rated RPM||1～60000rpm||Depend||★|
0:Standard mode (display frequency only)
1:Automatic scrolling display(Check 3.1 in detail )it show hz,current,power and voltage
|P23.15||Output phase loss function||0.0-30%, 0% means output phase detections shielded||30%||☆|
|r27.15||Accumulative running time||Unit:hour||●|
|P47.00||Solar pump Mppt function enable||
The parameters behind the 47 group cannot be changed!
1: Enable, to enable the special mppt function of the PV pump inverter
Solar pump control mode
Units digit’s: Startup mode
0: Manual start, the start mode is determined by P00.06;
1: automatic start,
When P00.06 change, the association changes here.
P00.06=0, when inverter starts and stops by keypad control, it is automatically modified to 1-automatic start
P00.06=1, when inverter starts and stops by terminal control.it is automatically changed to 0-manual start
Ten digit’s: MPPT function
0: MPPT is disabled; CVT control is used (voltage is given as P47.04).
1: Enable MPPT.
|P47.03||Automatic start timing||In auto start mode, set the time from power on to start. It is also waiting time to start||600||★|
|P47.04||MPPT starting voltage||
Set the starting voltage of the MPPT algorithm.
When the MPPT function is disabled, this value is the reference voltage.
|P47.05||Light detection threshold||If the output frequency is lower than this value and exceeds P47.06, it will be reported to Sleep and stop||0Hz||☆|
|P47.06||Light detection time||See P47.05 for explanation.||60s||☆|
|P47.07||Light weak wake up time||After the sleep fault is reported, if the time when Vdc is higher than the undervoltage point is greater than the set value, the fault state is exited and the operation continues.||600s||☆|
|P47.08||MPPT tracking step length||The amount of change in the bus voltage during an MPPT cycle. The larger the value, the faster the maximum power point is found, but the lower the accuracy of the maximum power point.||2V||☆|
|P47.09||Regulator proportional gain||0.001~1.00 It is for immediate response speed, it is not recommended to change||0.05||☆|
|P47.10||Regulator integral gain||0.001~0.100 tracking response.it is not recommended to change||0.05||☆|
|P47.30||Fast speed function||
Unit digit:fast starting
Ten digit:Fast mppt tracking
1. Does the product need to set a lot of parameters?
No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for P47.03=600S(Default) then it will automatically start
2. Could it replace my previous PV pumping inverter?
Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.
3. How to design solar PV water pump system?
Key point: the rated VOC and VMP and power of the PV Array need to match the input range of the inverter. If needed, we will provide technical support online.
4. How to make the water pump system work without sunshine?
Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design
