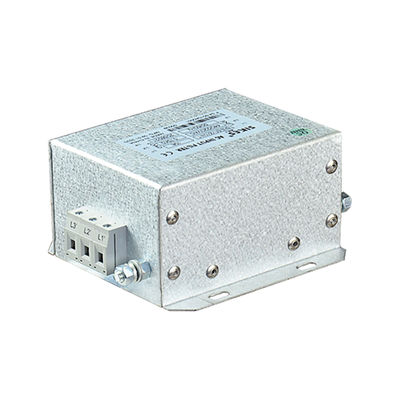

380v Emi VFD Filter 50A Noise Rfi Mains Electronical Filters
Product Details
| Product Name | 380v Filter For Vfd | Transfer Function | Low Pass |
|---|---|---|---|
| Rated Current | 50A | Frequency | 50/60hz |
| Insertion Loss | 0-90db | Line To Ground | 2250VDC |
| High Light | 380v VFD Filter,VFD Filter 50A |
||
Product Description
Emi filter 50A noise rfi mains electronical filters for VFD and converter
EMI Power Line Filter from the LC low-pass passive network components.It uses principles of impedance mismatch,so that by
the attenuation of electromagnetic interference signals.
Filter filtering effect depends on the extent of impedance mismatch,the greater the impedance difference, the better the
filter. For example,to get better results, for low-impedance power supply side, should be accompanied by a high input
impedance of the filter;pairs of high input impedance of the load side, then the filter with low output impedance.
Our Advantages
1. After years of efforts of the company's personnel, products successively obtained the cUL,
TUV,CQC, CE, ROSH certifications.
2. We have a professional R&D team; our aims is we won't let customers spend any extra money!
3. National high-tech enterprises, brand assurance, reliable quality, and we have the relevant
product certifications.
4. We cooperate with top scientific research laboratories to provide free EMC rectification technical
support, samples; and free conduction test.
5. Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement
within three months, free maintenance within six years, life-long maintenance!
Leakage current
Leakage current: at a given voltage and frequency, the current flow between the filter-phase line or the midline and ground.
Under normal circumstances, leakage current from the grounded capacitors (Y capacitor) is caused due to security
considerations, a variety of different testing standards for various types of equipment, leakage current from the strict 1
imitations. In particular, medical equipment, in choosing a filter, be sure to take full account of the leakage current.
Leakage current typically 250VAC 50HZ, below the ambient temperature is 20°C measured. Works as follows:
Low leakage current to meet with medical machine special requirements.
Applicable to suppressing noise and high frequency harmonic in power.
Low leakage current with high insert lose of noise.
Control EMI interference between line and line,line and ground.
Available for electronic equipments and measuring instruments.
| Model | Low Pass EMI Filter |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1A-100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC or 2000VAC |
| Maximum Leakage Current | 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max |
| MOQ | 5pcs |
| Price | USD60~80/Meter |
| Lead Time | 5~15 weekday for Low Pass EMI Filter |
