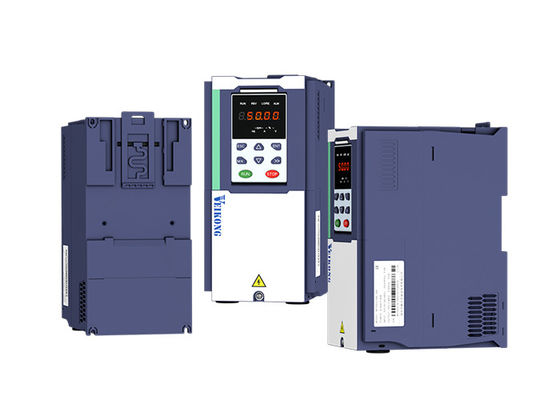

99.6% MPPT Efficiency 380V 15hp 11kw Solar Inverter / Ac Solar Pump Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms T/T, PayPal, Western Union, L/C
Supply Ability 15000pcs per Month
Product Details
Product Name 11kw Solar Pumping Inverter Type Triple
Power 11kw MPPT Efficiency 99.6%
Warranty 18 Months Inverter Type AC Inverter
High Light

380V 11kw Solar Inverter

,

15hp Ac Solar Pump Inverter

,

99.6% MPPT 11kw Solar Inverter

Product Description

380V 11kw 15hp Solar Pump Inverter With MPPT Tracking And LCD Keypad



Key Features:



● Comprehensive voltage level and power range


Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 0.4kW to 250KW



● Easy to use


Simply connect the photovoltaic panel to the inverter, no need to set any parameters, and the PV pump can be automatically started after power-on



● Multiple protection measures


It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product



Electrical Specifications





220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP20/IP21

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS


Solar Pump Inverter Model



Drive model

Max DC input current   (A)

Rated output current (A)

Applicable water pump (kW)

VFD500M-40T00150-PV

6.1

3.7

1.5

VFD500M-40T00220-PV

7.1

5

2.2

VFD500M-40T00400-PV

16.5

9.4

4

VFD500M-40T00550-PV

23.9

13

5.5

VFD500M-40T00750-PV

30.6

17

7.5

VFD500-40T00150-PV

6.1

3.7

1.5

VFD500-40T00220-PV

7.1

5

2.2

VFD500-40T00400-PV

16.5

9.4

4

VFD500-40T00550-PV

23.9

13

5.5

VFD500-40T00750-PV

30.6

17

7.5

VFD50040T01100-PV

39.2

25

11

VFD500-40T01500-PV

49.0

32

15

VFD500-40T01850-PV

57

37

18.5

VFD500-40T02200-PV

69

45

22

VFD500-40T03000-PV

91

60

30

VFD500-40T03700-PV

114

75

37

VFD500-40T04500-PV

146

90

45

VFD500-40T05500-PV

190

112

55

VFD500-40T07500-PV

237

152

75

VFD500-40T09000-PV

273

176

90

VFD500-40T11000-PV

319

210

110

VFD500-40T13200-PV

389

253

132

220V single phase or three phase level

VFD500-20T00075-PV

6.7

4.5

0.75

VFD500-20T00150-PV

9.9

7

1.5

VFD500-20T00220-PV

14.1

10.6

2.2

VFD500-20T00400-PV

22.6

17

4

VFD500M-20T00150-PV

9.9

7

1.5

VFD500M-20T00220-PV

14.1

10.6

2.2



Support GPRS



99.6% MPPT Efficiency 380V 15hp 11kw Solar Inverter / Ac Solar Pump Inverter 0


Product Application

99.6% MPPT Efficiency 380V 15hp 11kw Solar Inverter / Ac Solar Pump Inverter 1

99.6% MPPT Efficiency 380V 15hp 11kw Solar Inverter / Ac Solar Pump Inverter 2

FAQ:

1. What's the different between frequency inverter and solar pump inverter?


Frequency inverter is only accept AC input, it’s widely used in automated machines. But solar pump inverter not only accept AC input but also can connect with solar panel to accept DC input, it more save power, mainly used in solar pumping system.

2. What should be noticed when installing inverter?


Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.

3. Do we need to set the parameter before using?


No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
