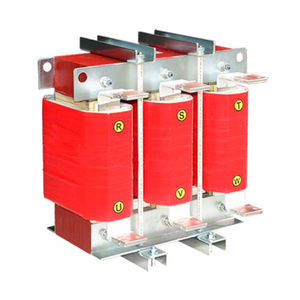

IP20 Vfd Line Choke / 3 Phase Line Choke For AC Frequency Inverter
Product Details
| Product Name | DC Reactor Choke | Material | Copper |
|---|---|---|---|
| Protection Level | IP20 | Noise | ≤65dB |
| Colar | Red | Current | Depend On Model |
| High Light | IP20 Vfd Line Choke,IP20 3 Phase Line Choke |
||
Product Description
DC Reactor Choke For AC Frequency Inverter Variable Frequency Drive VFD
Product Feature
The inside insulation material is of high performance & high temperature resistant combined with frame less process, the reactor's temperature heat-resisting ability is strong and the class F or class H is optional. Reactor air gap adopts argon arc welding process.which has low noise, small magnetic flux leakage and stable inductance. Coiled with foil winding process, reactor has strong resistance of electric magnetic force, good presentation quality. Core with grain- oriented cold-rolled silicon steel sheets, making reactors have high reliability, small size, light weight and low cost.
Product Parameters
|
Voltage Range |
DC500V-1000V |
|
Dielectric Strength |
Core-Winding, AC 3000V/50Hz/5mA, free of damage in 60s |
|
Insulation Resistance |
Core-Winding, DC 1000V, Resistance > 100M ohm |
|
Reactor's noise |
less than 65dB(to be measured at the point 1 meter away from the reactor horizontally) |
|
Standard |
GB 19212.1-2008 GB/T 1094.6-2011 |
Product Size
